OMIP SRL

OMIP SRL - FRUIT SLICER

Via Ponte 34 - 84086 Roccapiemonte (SALERNO) (ITALY)
: +39 081 931835
:

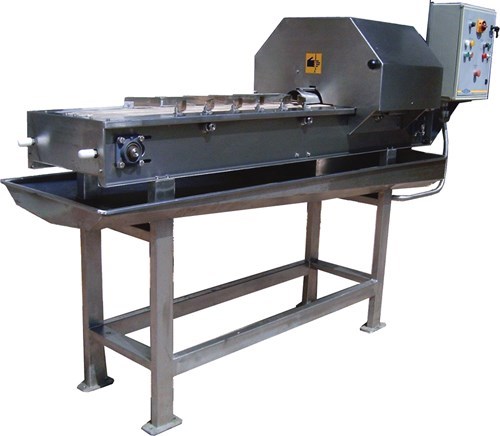

Fruit Slicer

The fruit slicer with three or four blades to cut fruit halves into four or five slices, fitted with a stainless steel tub gathering tailing and a stainless steel surface where the intended vinyl belt runs for the advancing of the product. The fruit slicer frame is realised in stainless steel.

Technical Features of fruit slicer:
Installed Power: 0,75 Kw
Production: up to 600 halves per minute

Overall dimensions: 2.000x700mm

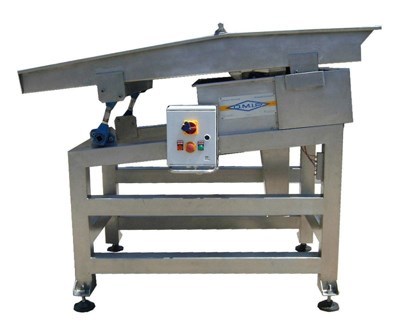

Turn-Over for Slicing Machine

It places the fruit halves with upward convex side and unloads them in the same position on the slicing conveyor.

The frame and vibrating plane of the fruit slicer are realised in stainless steel.

The vibration of the vibrating plane is given by four motorised floating arms.

Technical Features:
Installed Power: 1 Kw
Production: up to 600 halves per minute
Overall dimensions: 1.600x700mm

Slicing Machine from OMIP Food Processing Machinery on Vimeo.
