MOTOVARIO SPA - WORM GEAR REDUCERS FOOD INDUSTRY
The need to have in its portfolio of commercial motors suitable to
work in damp and corrosive, Motovario has led to devise a new specific
range of worm gear reducers food industry for these sectors.
These worm gear reducers food industryuse materials, surface treatments,
components and machining, for both the motor and the gear unit, such as
to enhance the characteristics of resistance and reliability.
Features of worm gear reducers food industry:

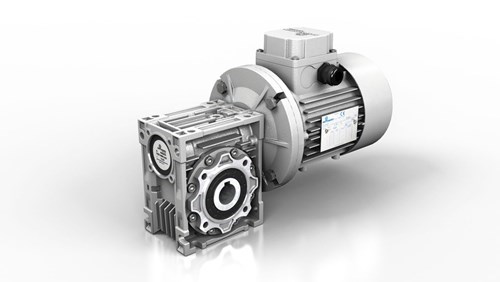

NMRX & SWX
NMRX s: 040-050-063-075-090
Sizes SWX: 030-040-050-063-075-090-105
Power up to 4.8 kW
Reduction ratios between 5 and 100
Torque max 660 Nm and admissible radial loads max 10.320 N
Hollow output shaft made of stainless steel AISI 304
Synthetic oil
Painted with blue epoxy powder RAL 5010 according to DIN 1843
SWX series available with special anti-corrosion coating Ral 5010 blue / gray RAL 9006 / Black RAL 9010

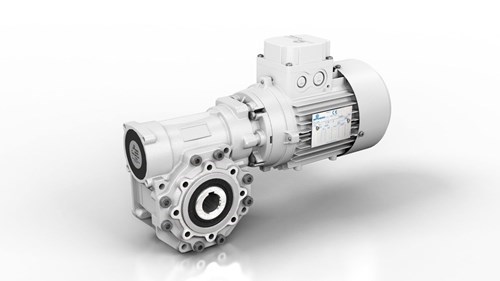

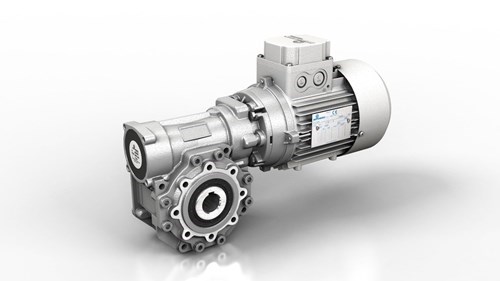

SWFX
For Food Industry
Sizes: 030-040-050-063-075-090-105
Hollow output shaft made of stainless steel AISI 316
Sticker suitable for food environments
PAM flange gasket for motor / gearbox
Steel screws AISI 316
Closure threaded holes through pressure caps without recesses
Carcass "sealed" without lubrication holes or vents for ventilation
Speed shaft seals conform FDA
Outgoing shielded bearings (type 2RS)
Lubricating oils for food use class UH1
Epoxy painted plywood white RAL 9010 (FDA approved)
